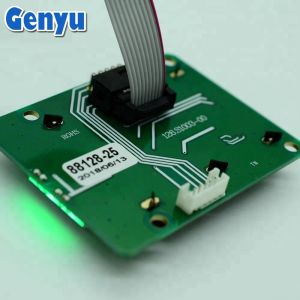

1. Brand Name: Genyu
Model Number: GY88128-25
| Display Mode | COB Segment Display Modules |
| PIN Pitch | 2.54 mm |
| Screen Size | 64(W)*41(H)*9(D) mm |
| Module Size | 76(W)x58(H)x19.7(D) mm |
| Screen segment | Segment Custom LCD |
| Control/drive IC | HT1621 |
| Display color/BL LED | WHITE /BLUE/ RED /YELLOW /GREEN /RGB FULL COLLOR |
| Viewing Angle | 6 O' clock LCD LED SCREEN |
| Display mode | TN HTN positive transmissive |
| LCD parameter | Duty1/4 Bias1/3 |
| LCD parameter | BL I=30MA |
| LCD parameter | VOP=4.2V |
| Operating Temperature | -10~+60℃ |
| View Area | 40.5 * 20.1mm |
PIN Interface Deails:
| HTN CNI | 1 | DATA | HTN CN2 | 1 | N.C |
| 2 | RW | 2 | FUNCT2 | ||
| 3 | BL | 3 | VDD(5V) | ||
| 4 | CS | 4 | FUNCTION | ||
| 5 | VSS | 5 | ON.P | ||
| 6 | FUNCT2 | 6 | SW2 | ||
| 7 | VDD(5V) | ||||
| 8 | FUNCTION | ||||
| 9 | ON.P | ||||
| 10 | SW2 |
3. The Drawing
Want more?
The intended PIN/FPC Connector Diagram?
LCD layout design according to your screen image?
Contact us, my friend, just click here!
LCD SCREEN FRONT SIDE
LCD SCREEN BACKSIDE
WHEN THE BACKLIGHT NO WORKING
WHEN THE GREEN BACKLIGHT WORKING
More Segment LCD Display Modules for Electric Power/Solar Inverter/UPS Products
