| NO. | ITEM | SPECIFICATIONS |

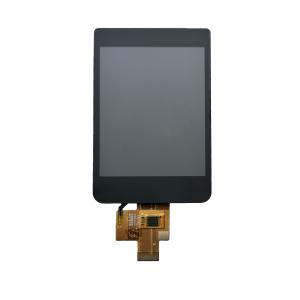

| 1 | Product Name | 3.5-inch TFT LCD Display with capacitive touch |
| 2 | LCD Type | Transmissive, IPS |
| 3 | Resolution | 240x320 dots |
| 4 | Structure | G+F |
| 5 | LCD Operating Temperature | -20~+70℃ |
| 6 | FPC Connector | 20 pins, ZIF type, 0.5 mm |
| 7 | Interface | SPI(LCD)+IIC(Touch screen) |
| 8 | Backlight Type | 8 LEDs, White, 160mA |
| 9 | Outline Dimension | 57.96(W)* 93.00(H)* 3.65(T) mm |
| 10 | LCD Active Area | 51.27(W)* 68.36(H) mm |
| 11 | Driver IC | ST77989T3 + FT6347 |
Common Applications:
Industrial touch panels
Medical devices
Arduino or STM32-based GUI interfaces
Portable meters or instruments
DIY smart home displays
Popular Interfaces & Compatibility:
MCUs: Arduino Mega, STM32, ESP32, Raspberry Pi
Libraries: Adafruit_GFX, TFT_eSPI, uGFX, LittlevGL (LVGL)
Interfaces:
SPI: Slower but uses fewer pins; commonly used in Arduino
8-bit/16-bit Parallel: Faster, used in STM32/ARM-based boards
Capacitive Touch: Uses I²C interface usually
Resistive Touch: Uses ADC channels or I²C via XPT2046
A. Our office is in Shenzhen, Guangdong, and our factory is in Jiangxi Province.
4. Q: Can I get a lower price for TFT LCD?
A: Yes, cheaper price with bigger/larger quantities.
5. Q: How do you control the quality of products?
A: All products are 100% inspected before shipment.
6. Q: Can you provide technical support?
A: Yes, we will provide detailed specifications and initialization code.
